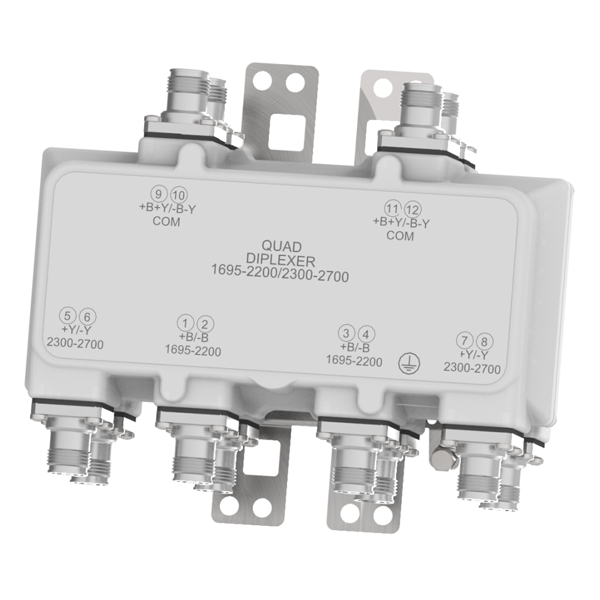

Kaelus: Quad Diplexer B25 +B66/B41

The Kaelus DBCT156 is a bi-directional Diplexer designed to combine 1800-2100 and 2300-2600 technologies. The DBCT156 provides low insertion loss and excellent passive intermodulation performance. The DBCT156 can be used at either the BTS or antenna end of the feeder.

• Enables antenna/feeder sharing for 1800-2100 and 2300-2600 networks
• Low insertion loss & high return loss
• Low passive IM performance
• Multiple DC/AISG bypass configurations available with built-in
• lightning protection

• 4 in / 8 out
• 4.3-10 (F)
• DC TO 1800-2100
