Rohn: JRM27510 Non-Penetrating Roof Mount with 2-7/8" OD x 10ft Mast
Part Number:
JRM27510
Request Quote
Couldn't load pickup availability
Shipping:
Orders containing this item (or multiple quantities) may require an additional shipping charge if their size or weight exceeds standard carrier limits.

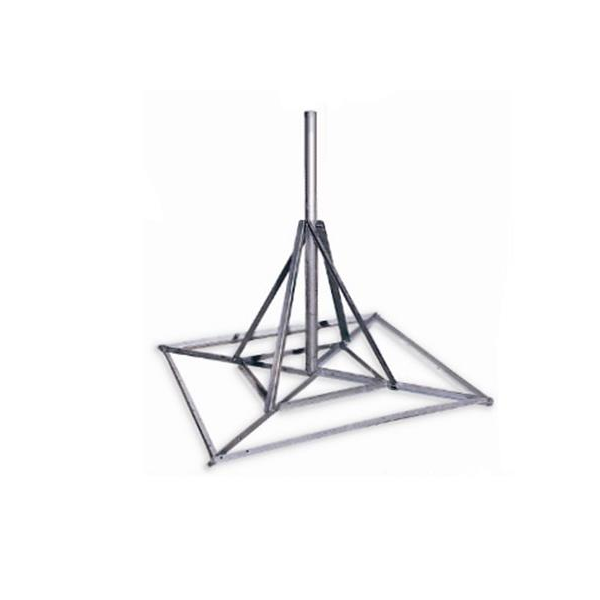

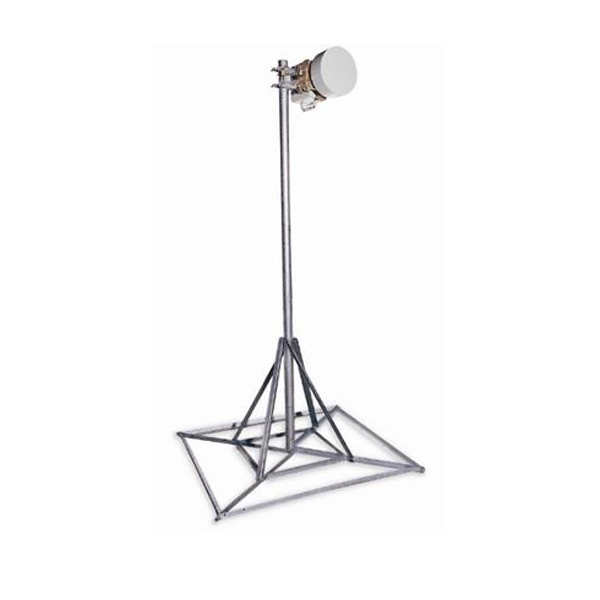

Rohn: JRM27510 is a non-penetrating ballast roof mount designed to support antennas and communications equipment without fastening through the roof surface. It includes a one-piece 10ft mast with a 2-7/8" outside diameter and a 5ft-square base designed to accommodate concrete-block ballast.
- Non-penetrating design avoids drilling through the roof
- Includes a one-piece 10ft pipe mast
- Mast measures 2-7/8" outside diameter
- 5ft-square ballast base
- Designed to accept up to 12 standard concrete blocks
- Hot-dip galvanized steel construction
- Suitable for cellular, PCS, broadband, radio, and other communications applications
- Minimal bolted connections simplify assembly
- Concrete ballast blocks are not included
- Optional protective roof pad or mat is available separately
- Ballast requirements depend on antenna loading, wind conditions, and installation location
- Roof structure and ballast requirements must be evaluated for the specific installation
