Microdata Telecom: Twin Diplexer 1695-2200MHz, 2300-2700MHz,
Part Number:
MI-54844A
Couldn't load pickup availability
T-Mobile SKU:
34546

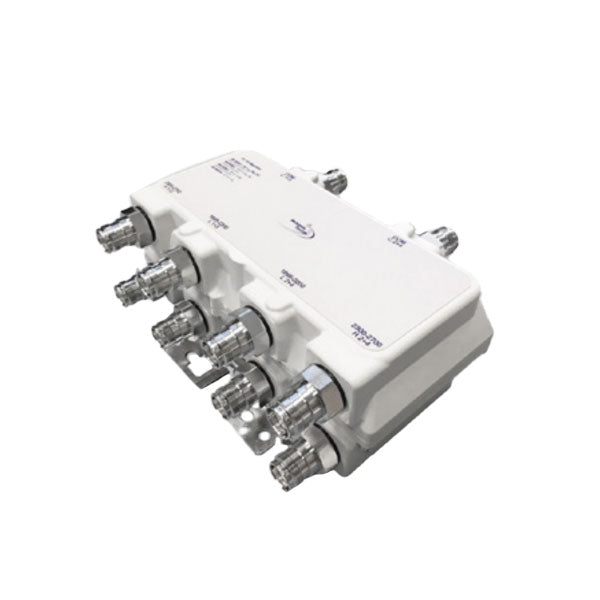

Microdata Telecom (Kaelus): Twin Diplexer, 1695-2200MHz, 2300-2700MHz, B25+B66/B41
- Diplexer with DC/AISG Auto-Sense
-
Low Band:
- Frequency Band: 1695 - 2200 MHz
- Insertion Loss: < 0.1 dB*
- Return Loss: > 18 dB
- Rejection high band: 50 dB
- Continuous Average Power: 250 W
- Intermodulation, 2x43 dBm TX Carrier: -117 dB
-
High Band:
- Frequency Band: 2300 - 2700 MHz
- Insertion Loss: < 0.12 dB*
- Return Loss: > 18 dB
- Rejection low band: 50 dB
- Continuous Average Power: 250 W
- Intermodulation, 2x43 dBm TX Carrier: -117 dBm
| Connection type |
|---|
