N Female Solder Type Connector for LMR240 Cable
Couldn't load pickup availability

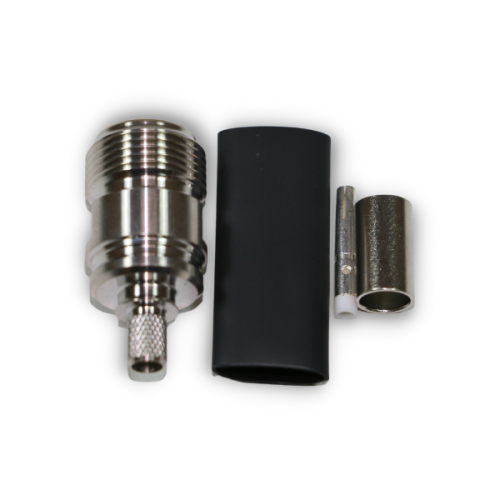

N Female Solder Type Connector
- Application: Connector for LMR240 cable (model LMR240 or equivalent).
- Installation: This connector is factory-installed onto 1/4" Flexible low loss cables.
The N Female Solder Type Connector is specifically designed for use with LMR240 cable (model LMR240 or equivalent). This connector is ideal for applications that require reliable, low-impact signal connections in telecommunications systems, data communications, and other signal transmission applications. The N connector allows for easy and secure installation, as it is factory-installed onto 1/4" flexible low-loss cables. Its solder-type design ensures a high-quality, durable connection, providing excellent signal integrity and resistance to harsh environmental conditions. This connector is a robust and efficient choice for ensuring optimal performance in environments where fast, secure connections are essential.
| CROSS REFERENCE | |
| Alternative To | 172149 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| VSWR | < 1.2 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -65°C to ~165°C |
| RoHS Compliance | Yes |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Spring Copper Brass |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass |
| Connector A | N Female |
| Type | |
|---|---|
| Size | |
| Connection type |
If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible.
