N Female solder Type connector for RG402 Cable
Part Number:
123-RG402NFS
Contact Us for Pricing & Availability
Couldn't load pickup availability

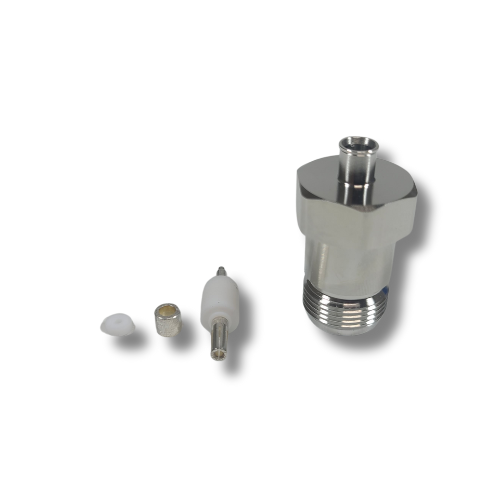

N Female Solder Type Connector
- Application: Connector for RG402 cable (model RG402 or equivalent).
The N Female Solder Type Connector is specifically designed for use with RG402 cable (model RG402 or equivalent). This connector is ideal for applications that require reliable, low-impact signal connections in telecommunications systems, data communications, and other signal transmission applications.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Spring Copper Brass |
| Mating Cycles | >500 |
| Options | Solder Type |
| Outer Conductor | Brass |
| Connector A | N Female |
