By 123eWireless

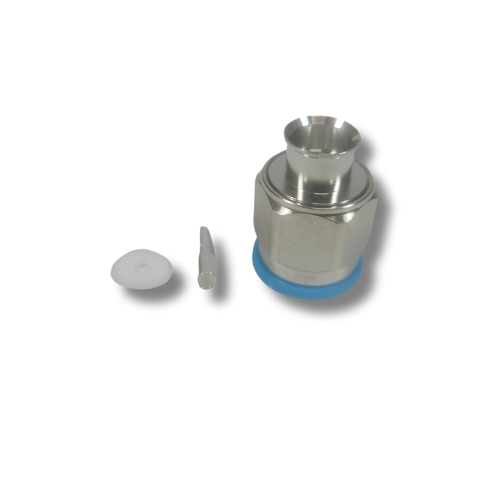

N Male Solder Type for 3/8" Super Flexible Cable
Part Number:
123-38SFNM-S
Contact Us for Pricing & Availability
Couldn't load pickup availability
The N Male Solder Type is designed for 3/8" super flexible cables, such as the 123-38SF model or equivalent. This connector is factory-installed onto 3/8" super flexible cables, ensuring a secure and reliable connection for high-performance RF applications. Its solder center and body design facilitate a stable, low-loss connection, making it ideal for demanding environments.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| Weather Standard | IP67 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | N Male |
