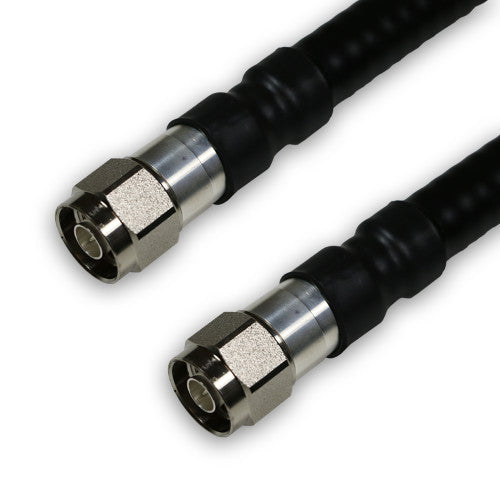

N Male to N Male Low 1/2" Flexible Black Plenum Low PIM Jumper, 175ft
Part Number:
123-1PNMNM-175-P-BK
Couldn't load pickup availability
N Male to N Male Low 1/2" Flexible Black Plenum Low PIM Jumper, 175ft
| CROSS REFERENCE | |
| Alternative To | H4-NMNM |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50Ω +/- 2 |
| Peak Power | 40kW |
| PIM | -165 dBc IEC 62037 |
| Return Loss | -28 db |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +80°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Dielectric Material | Extruded Polyethylene, 0.464in (11.8mm) |
| Inner Conductor | Copper-Clad Aluminum 0.19in (4.8mm) |
| Maximum Bending Radius | Single: 4.8in, (120mm); Repeated: 5.0in, (125mm) |
| Outer Conductor | Annularly Corrugated Copper, 0.54in (13.8mm) |
| Connector A | N Male |
| Connector B | N Male |
| Jacket Color | Black |
| Jacket Material | Flexible Plenum, UL910 CMP, NEC 820-53(a) CATVP |
| Outer Diameter | 0.627in (15.93mm) |
| Type | |
|---|---|
| Size | |
| Connection type |
