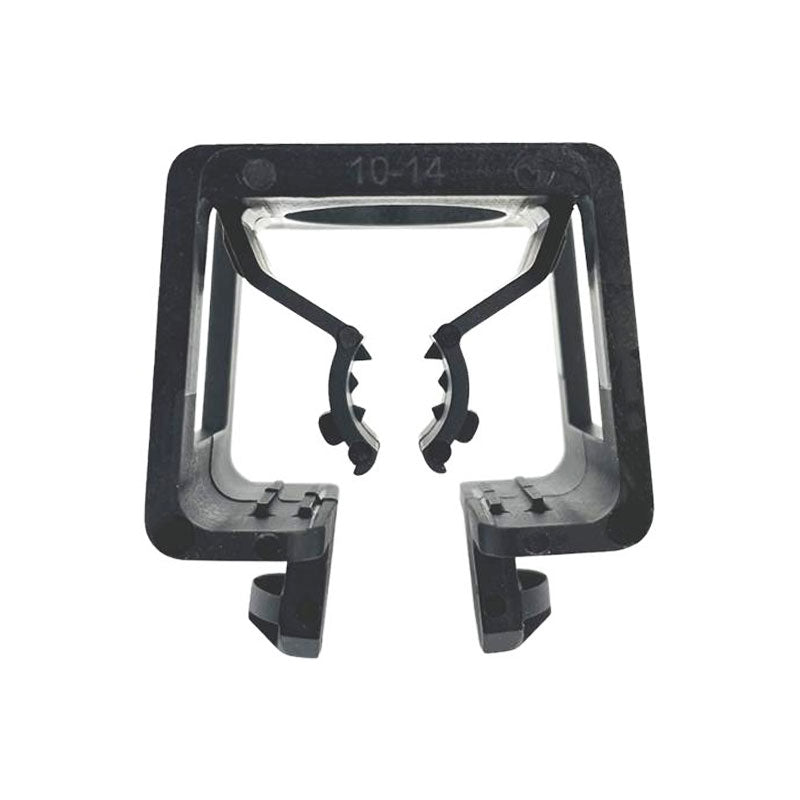

ConcealFab: PIM Shield Plastic Snap-in Hanger 10-14 mm - 10

PIM Shield plastic snap-in hangers have been specifically designed for a quick installation of cables, no tools required. The high flexibility of the body, obtained with high-performance compound and optimal design, allows easy handling by snapping into support bars (sold separately) that are 0.118-inch to 0.160-inch thick with 0.71-inch to 0.76-inch diameter holes.

• Low PIM
• UV stable, glass-filled Nylon
• Easy to install / re-position
• Cable Diameter: 10 to 14mm
• Height: 31mm (1.22")
• Length: 30mm (1.18")
• Width: 36mm (1.42")
• Material: UV stable, glass filled Nylon
• Pim Performance: IM3 <-100 dBm when tested in accordance with IEC 62037-8, near field test, 2x 20W test tones, while subjected to dynamic stimulus.
• Sold in Packs of 10
