  3. PolyPhaser: 700 MHz-2.35GHz DIN Male Surge Side, DIN Female Protected Side
By PolyPhaser

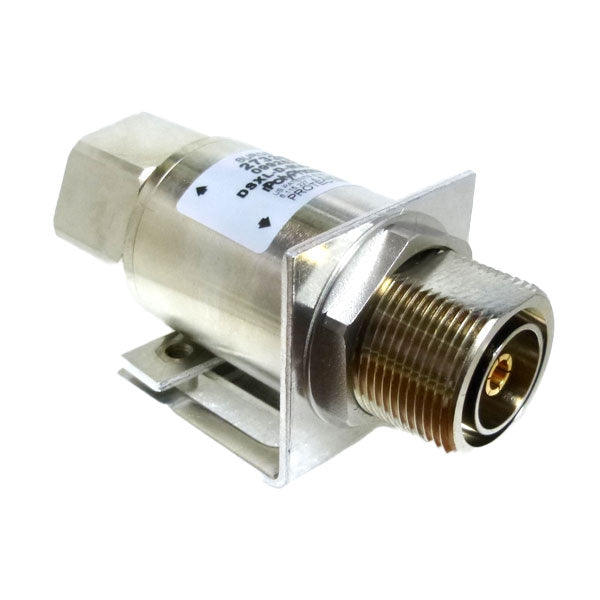

PolyPhaser: 700 MHz-2.35GHz DIN Male Surge Side, DIN Female Protected Side

Part Number: DSXL-D-MA-BFS
Request Quote

PolyPhaser: 700 MHz-2.35GHz DIN Male Surge Side, DIN Female Protected Side

  • RF Power (Watts):  500-1000
  • Impedance:  50Ω
  • Surge: 30kA EC 1000-4-5 8/20µs waveform
  • Frequency Range: 0.8 GHz to 2.3GHz @1.1:1 0.7GHz to 2.5GHz @ 1.2:1
  • VSWR: 1.1 to 1 over frequency range
  • Insertion Loss: <0.1 dB -
  • Continuous Power: 500W @ 85oC; 750W @40oC; 1kW @ 20oC
  • Throughput Energy: < 0.5000 µj for 3kA @ 8/20µs waveform
  • Let-Through Voltage: <±3V for 3kA @ 8 20µs waveform
  • Temperature: -40oC to +85oC Storage Operating
  • Relative Humidity: to 95%
  • Vibration: 1G up to 100Hz
Request Quote
Frequency range 700MHz-2.35GHz
Connection type DIN Female to DIN Male
