By PolyPhaser

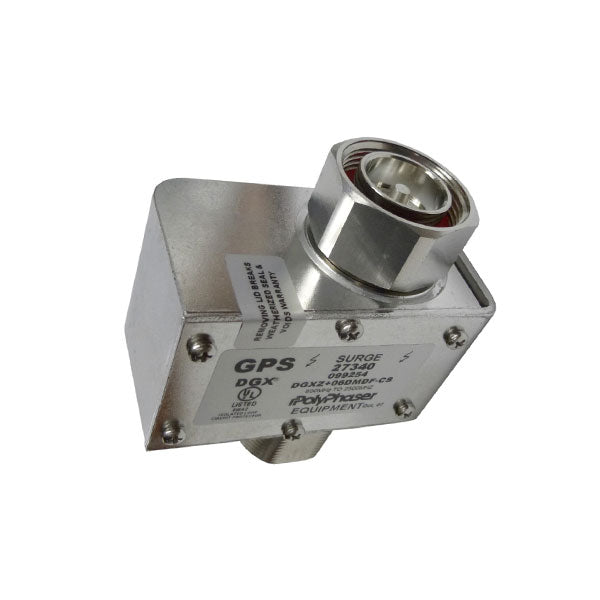

PolyPhaser: RF Protector, DIN Female Equipment Side, DIN Male Surge Side, 800MHz-2.5GHz, GPS
Part Number:
DGXZ+06DMDF-CS
Request Quote
Couldn't load pickup availability
PolyPhaser: RF Protector, DIN Female Equipment Side, DIN Male Surge Side, 800MHz-2.5GHz, GPS
- Line Voltage: ±6 Vdc
- Frequency Range: 800 MHz to 2.5 GHz
- Protected Side Connector: DIN Female
- Surge Side Connector: DIN Male
- Turn On Voltage: ±6.5 Vdc
- VSWR: ≤1.1:1
- Insertion Loss: ≤0.1 dB
- RF Power: 300 Wrms
Request Quote
| Frequency range | |
|---|---|
| Connection type |
