QMA Male Solder Type Connector for LMR240 Cable
Couldn't load pickup availability

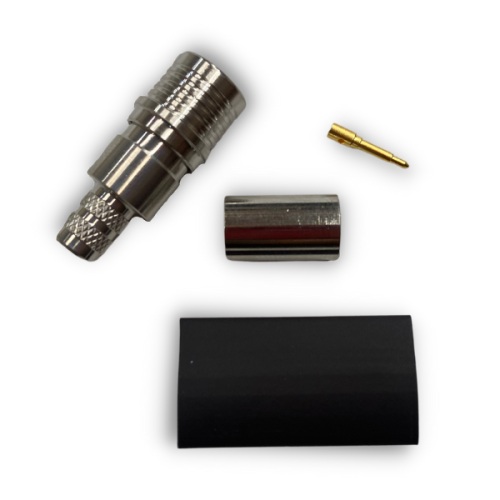

QMA Male Solder Type Connector
- Application: Connector for LMR240 cable (model LMR240 or equivalent).
- Installation: This connector is factory-installed onto 1/4" Flexible low loss cables.
The QMA Male Solder Type Connector is specifically designed for use with LMR240 cable (model LMR240 or equivalent). This connector is ideal for applications that require reliable, low-impact signal connections in telecommunications systems, data communications, and other signal transmission applications. The QMA connector allows for easy and secure installation, as it is factory-installed onto 1/4" flexible low-loss cables. Its solder-type design ensures a high-quality, durable connection, providing excellent signal integrity and resistance to harsh environmental conditions. This connector is a robust and efficient choice for ensuring optimal performance in environments where fast, secure connections are essential.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -65°C to ~165°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Spring Copper Brass |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass |
| Connector A | QMA Male |
| Type | |
|---|---|
| Size | |
| Connection type |
