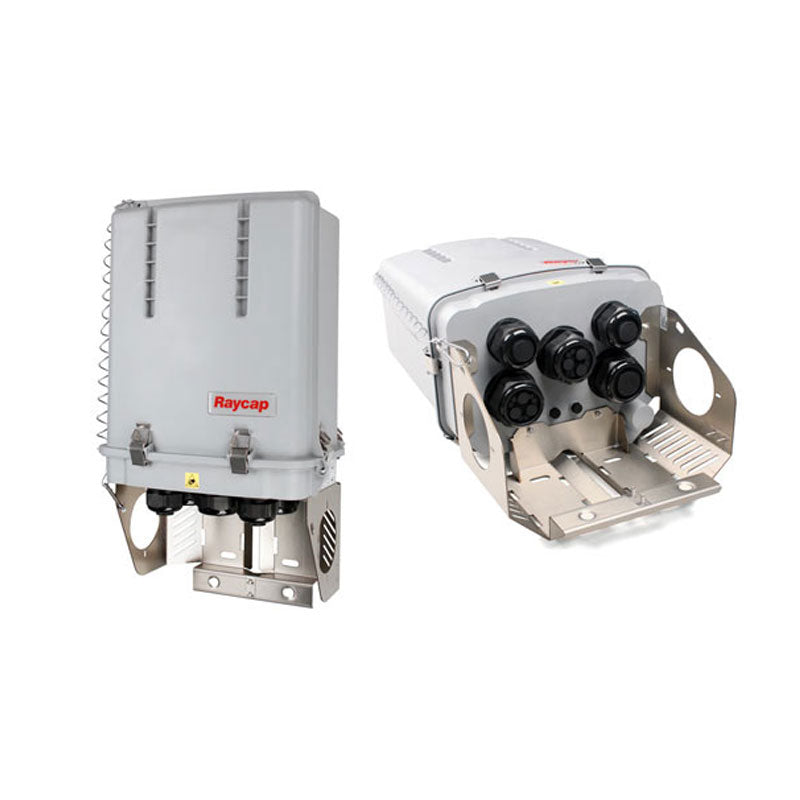

Raycap: DC Surge Protection for 6 RRH Twr/Base/Roof w/3315-A

Raycap's flexible Tower, Base Stations and Rooftop protection and Distribution
products provide protection for up to 6 Remote Radio Heads/Integrated Antennas. The solutions mitigate the risk of damage due to lightning and provide high levels of availability and reliability to radio equipment.

• Employs the Strikesorb® 30-V1-FV Surge Protective Device (SPD) specifically designedfor the Remote Radio Head (RRH) installation environment and certified for use in DCapplications and at low DC operating voltages (48V).
• The Strikesorb 30-V1-FV is a Class I SPD, certified by VDE per the IEC 61643-11 standard as suitable for installation in areas where direct lightning exposure is expected. Strikesorb 30-V1-FV is able to withstand direct lightning currents of up to 12.5kA (10/350) and induced surge currents of up to 60kA (8/20).
• Provides very low let through / clamping voltage - unique for a Class I product - as it does not employ spark gaps or other switching elements. Strikesorb offers unique protection levels to the RRH equipment as well as the Base Band Units.
• Power alarms for wiring anomalies and power disruptions, moisture detection and intrusion
• Fully recognized to the UL 1449 5th Edition Safety Standard
• RS485 communication link uses two (2) twisted pair (+ground) wires per hybrid cable,
  and communicates all voltage, boost system and alarm data
