Raycap: Patch Panel Pass Thru Module w/12 Duplex LC Couplers

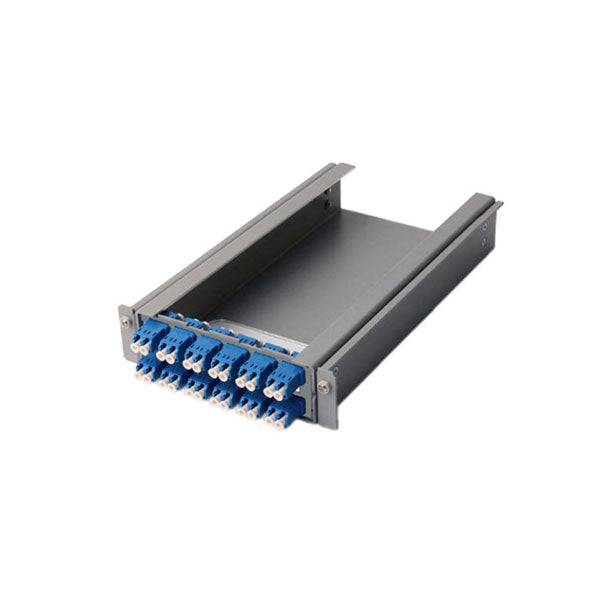

Raycap: Patch Panel Pass Thru Module w/ 12 Duplex LC Couplers

• Patch Panel/Fiber Optic Pass Through Module designed for use with the 4520 RM power and fiber distribution rack
• Modular design will install wherever splitter modules can be installed
• Provides patching and distribution of fiber from the hybrid inputs at the base
  where splitter modules are not needed

Specifications:

• Fiber connection method: Duplex LC/ Duplex LC
• Fiber access method: Slide-out module
• Number of spare parking spaces: 12 LC fiber couples
• Operating temperature: -40° C to +80° C
• Enclosure dimension: (L × W × H) 9.703" x 5.685" x 1.476" (246.4 x 144.4 x 37.4 mm)
