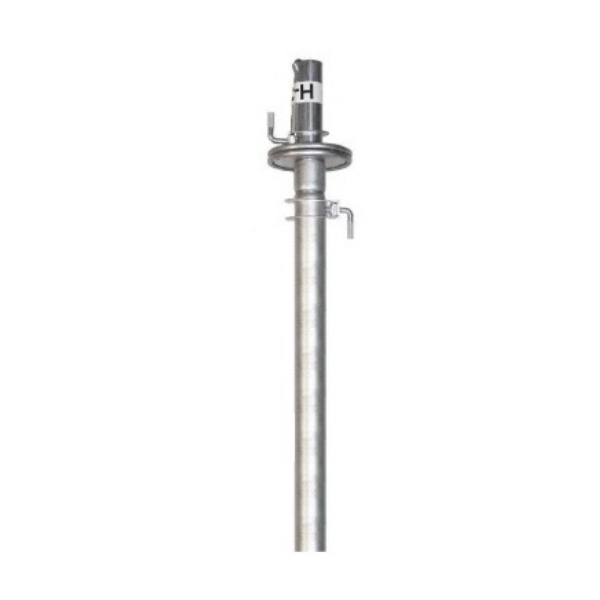

Rohn: H20 20-Foot Telescoping Antenna Mast

Rohn: H20 is a two-section telescoping antenna mast designed to support light-duty antennas in guyed or bracketed installations. Its galvanized steel construction and overlapping tube design provide dependable outdoor support for television, amateur radio, wireless internet, MMDS and cellular signal-booster antennas.

• Nominal mast height of 20 feet

• Maximum extended height of approximately 19.25 feet

• Collapsed length of approximately 10.25 feet

• Two-section telescoping design

• Top section measures 10 feet long with a 1.25-inch outside diameter

• Top section is constructed from 16-gauge galvanized steel tubing

• Bottom section measures approximately 9 feet 10 inches long with a 1.50-inch outside diameter

• Bottom section is constructed from 18-gauge galvanized steel tubing

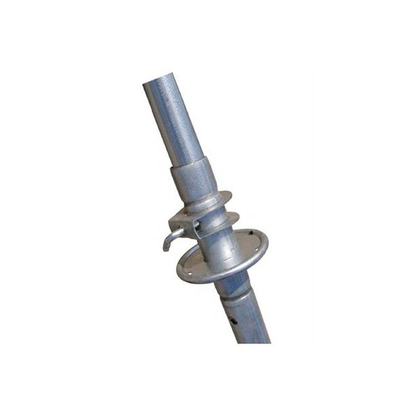

• Interior tube flanging and double-crimped exterior tubing create stable overlapping joints

• Supplied with mast hardware, including guy rings, mast clamps and cotter pins

• Designed for guyed or bracketed installations

• Mast sections extending more than 10 feet above their uppermost support should be guyed

• Antenna, guy wires and mounting base are not included
