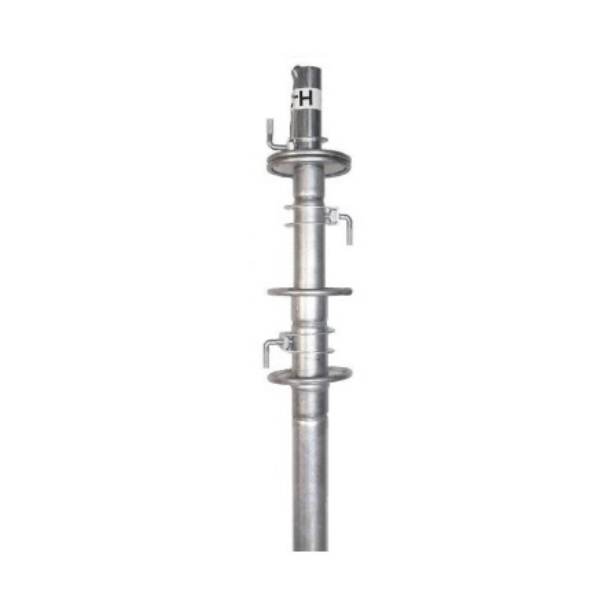

Rohn: H30 30-Foot Telescoping Antenna Mast

Rohn: H30 is a three-section telescoping antenna mast designed to support light-duty antennas in properly guyed or bracketed installations. Its galvanized steel construction and deeply overlapping tube sections provide a stable outdoor mounting structure for television, wireless internet, MMDS and cellular signal-booster antennas.

• Nominal mast height of 30 feet

• Maximum extended height of approximately 28 feet

• Collapsed length of approximately 10.25 feet

• Three-section telescoping design

• Top section measures 10 feet long with a 1.25-inch outside diameter

• Top section is constructed from 16-gauge galvanized steel tubing

• Middle section measures approximately 9 feet 10 inches long with a 1.50-inch outside diameter

• Middle section is constructed from 18-gauge galvanized steel tubing

• Bottom section measures approximately 9 feet 4 inches long with a 1.75-inch outside diameter

• Bottom section is constructed from 18-gauge galvanized steel tubing

• Interior tube flanging and double-crimped exterior tubing create stable overlapping joints

• Supplied with mast hardware, including guy rings, mast clamps and cotter pins

• Designed for properly guyed or bracketed installations

• Mast sections extending more than 10 feet above their uppermost support should be guyed
• Antenna, guy wires and mounting base are not included
