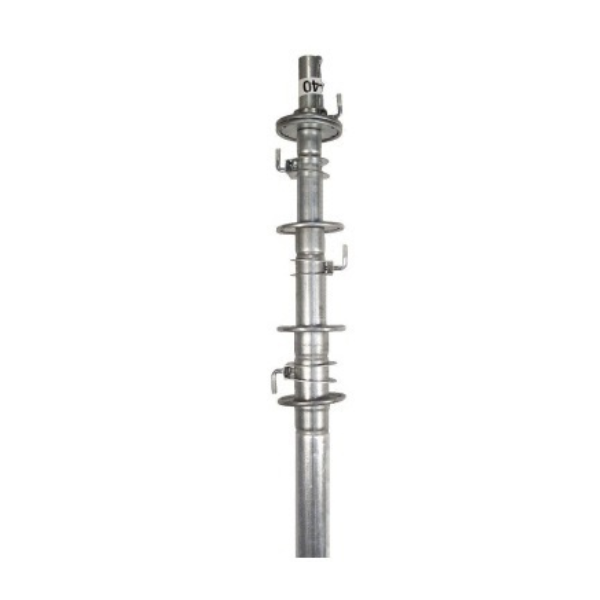

Rohn: H40 40-Foot Telescoping Antenna Mast

Rohn: H40 is a four-section telescoping antenna mast designed to support light-duty antennas in properly guyed or bracketed installations. Its pre-galvanized steel construction and overlapping tube design provide stable, corrosion-resistant support for outdoor antenna applications.

• Nominal mast height of 40 feet

• Maximum extended height of approximately 36.25 feet

• Collapsed length of approximately 10.25 feet

• Four-section telescoping design

• Top section measures 10 feet long with a 1.25-inch outside diameter

• Top section is constructed from 16-gauge galvanized steel tubing

• Second section measures approximately 9 feet 10 inches long with a 1.50-inch outside diameter

• Second section is constructed from 18-gauge galvanized steel tubing

• Third section measures approximately 9 feet 4 inches long with a 1.75-inch outside diameter

• Third section is constructed from 18-gauge galvanized steel tubing

• Bottom section measures approximately 8 feet 10 inches long with a 2-inch outside diameter

• Bottom section is constructed from 18-gauge galvanized steel tubing

• Interior tube flanging and double-crimped exterior tubing create stable overlapping joints

• Supplied with mast hardware, including guy rings, mast clamps and cotter pins

• Designed for properly guyed or bracketed installations

• Maximum recommended antenna load is 2 square feet of effective projected area
  Antenna, guy wires, anchors and mounting base are not included
