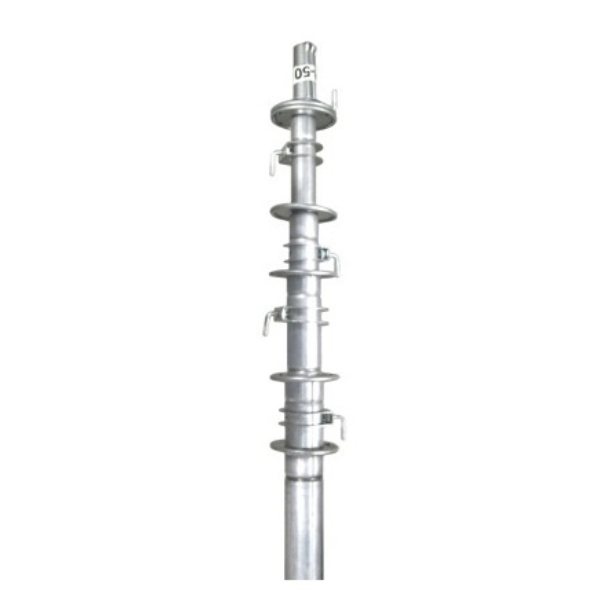

Rohn: H50 50-Foot Telescoping Antenna Mast

Rohn: H50 is a five-section telescoping antenna mast designed to support light-duty antennas in properly guyed or bracketed installations. Its pre-galvanized steel construction and deeply overlapping tube sections provide stable, corrosion-resistant support for outdoor antenna applications.

• Nominal mast height of 50 feet

• Maximum extended height of approximately 43.9 feet

• Collapsed length of approximately 10.25 feet

• Five-section telescoping design

• Top section measures 10 feet long with a 1.25-inch outside diameter

• Top section is constructed from 16-gauge galvanized steel tubing

• Second section measures approximately 9 feet 10 inches long with a 1.50-inch outside diameter

• Second section is constructed from 18-gauge galvanized steel tubing

• Third section measures approximately 9 feet 4 inches long with a 1.75-inch outside diameter

• Third section is constructed from 18-gauge galvanized steel tubing

• Fourth section measures approximately 8 feet 10 inches long with a 2-inch outside diameter

• Fourth section is constructed from 18-gauge galvanized steel tubing

• Bottom section measures approximately 8 feet 4 inches long with a 2.25-inch outside diameter

• Bottom section is constructed from 18-gauge galvanized steel tubing

• Interior tube flanging and double-crimped exterior tubing create stable overlapping joints

• Supplied with mast hardware, including guy rings, mast clamps and cotter pins

• Designed for properly guyed or bracketed installations

• Maximum recommended antenna load is 2 square feet of effective projected area

• Antenna, guy wires, anchors and mounting base are not included
