Rohn: KH8175A Base Bolt Kit with Template for 25GSSB

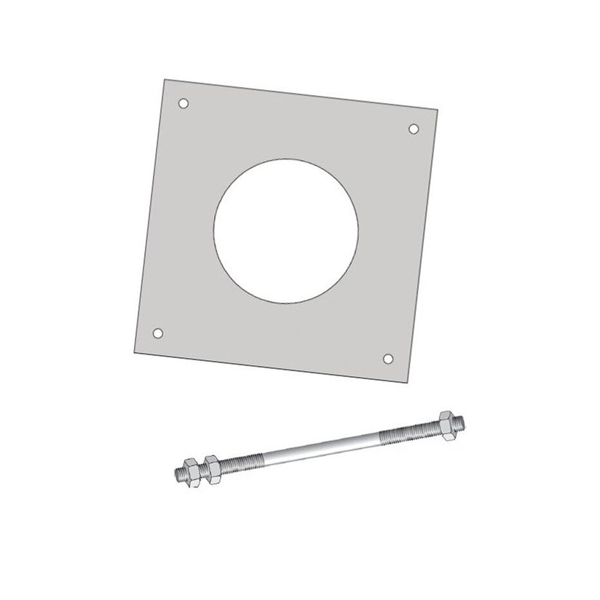

Rohn: KH8175A is a base bolt and setting-template kit designed for installing the Rohn 25GSSB base plate in self-supporting 25G tower applications. The template holds the four anchor bolts in the correct pattern while the concrete foundation is poured.

• Designed for the Rohn 25GSSB self-supporting tower base plate

• Includes one four-hole setting template

• Includes four concrete anchor bolts

• Anchor bolts measure 5/8" diameter x 12" long

• Positions bolts on a 16" x 16" center-to-center pattern

• Hot-dip galvanized steel components

• Holds the anchor bolts in alignment during the concrete pour

• Supports accurate placement of the 25GSSB base plate

• Intended for engineered concrete foundation installations

• 25GSSB base plate is not included

• Foundation design must meet site-specific engineering and building-code requirements
