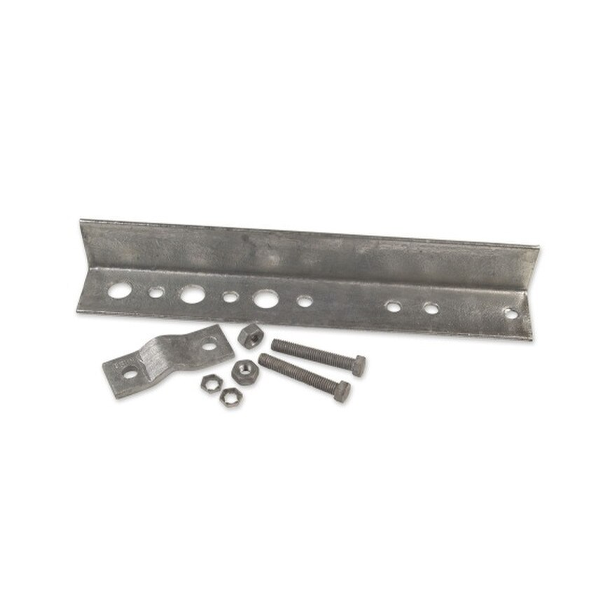

Rohn: KY2041A 3-Hole Waveguide Bracket Assembly for G-Series Towers

Rohn: KY2041A is a three-hole waveguide bracket assembly designed to secure waveguide and communications cable lines along Rohn G-Series tower legs. Its galvanized construction and included mounting hardware provide a compatible cable-support point for multiple G-Series tower sizes.

• Compatible with Rohn 25G, 45G, 45GSR, 55G, and 65G towers

• Secures waveguide and communications cable lines to tower legs

• Features three 7/16" holes

• Features three 3/4" holes

• 2-1/4" hole spacing

• Mounts to tower legs measuring from 3/4" to 2-1/4" OD

• Hot-dip galvanized steel construction

• Includes one bracket and required tower-mounting hardware

• Uses 3/8"-16 threaded mounting hardware

• Rohn recommends five assemblies per 20ft of tower for 4ft on-center spacing

• One bracket assembly supplied per order

• Cable hangers and waveguide hardware are not included
