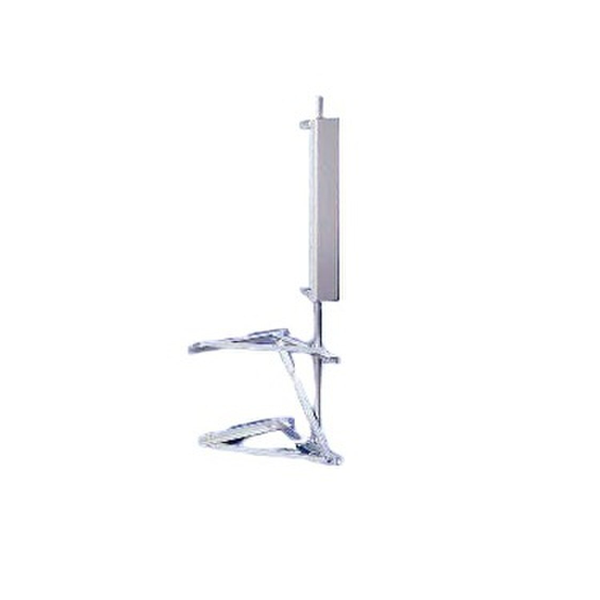

Rohn: PWM Heavy-Duty Pole Wall Mount for Up to 5-1/2" OD Pipe

Rohn: PWM is a heavy-duty pole wall mount designed to support satellite, PCS, cellular, microwave, directional, and omnidirectional antennas. Its adjustable design accommodates mounting pipes up to 5-1/2" OD and provides multiple antenna standoff positions from the supporting wall.

• Heavy-duty wall-mounted antenna support assembly
• Accepts mounting pipes up to 5-1/2" OD
• Suitable for satellite, PCS, cellular, microwave, directional, and omnidirectional antennas
• Three adjustable standoff positions: 15-3/4", 21-3/4", and 27-3/4"

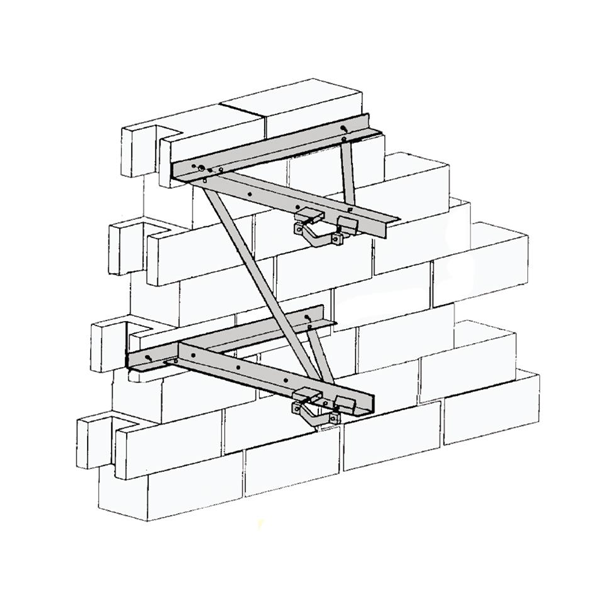

• Two parallel mounting brackets with diagonal support bracing
• Hot-dip galvanized after fabrication for corrosion protection
• Compatible with the optional Rohn KA66 interior backing plate for applicable through-wall installations
• Mounting pipe is sold separately
• Wall attachment hardware is not included
• Installation surface must be evaluated for all loads imposed by the mount and antenna
• Antenna installation must be properly grounded according to applicable codes
