Rohn: SB25G5 5ft Short Base Section for 25G Towers
Part Number:
SB25G5
Request Quote
Couldn't load pickup availability
Shipping:
Orders containing this item (or multiple quantities) may require an additional shipping charge if their size or weight exceeds standard carrier limits.

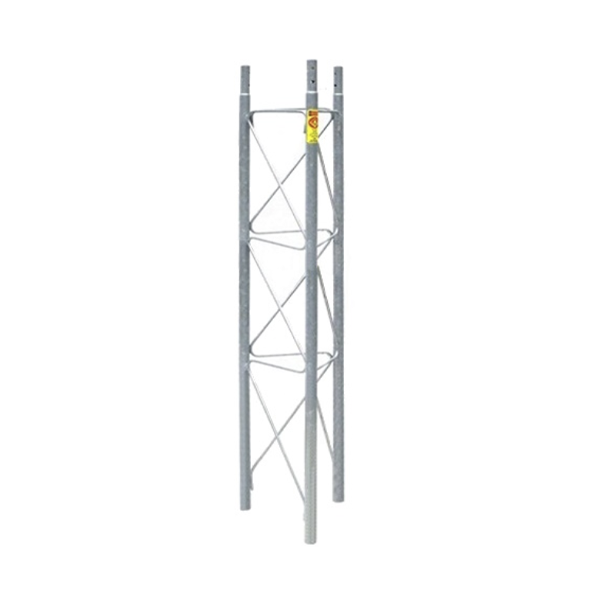

Rohn: SB25G5 is a 5ft short base section designed for direct embedment in a poured concrete foundation. It creates a fixed, bolted connection between the foundation and the first Rohn 25G tower section in approved self-supporting, bracketed, or guyed tower configurations.
- Designed for Rohn 25G tower installations
- 5ft overall section length
- Embedded directly into a poured concrete foundation
- Primarily specified for bracketed and self-supporting 25G configurations
- May be used in approved guyed configurations with the appropriate foundation design
- Connects to a standard Rohn 25G tower section
- Double-bolted tower-section joint design
- Constructed with 1-1/4" OD steel tubular legs
- Solid steel zig-zag bracing
- Hot-dip galvanized after fabrication for corrosion protection
- Concrete, gravel, tower sections, and installation materials are not included
- Foundation dimensions must follow the applicable Rohn engineering drawings and local requirements
