Rohn: SB65GH 5ft Short Base Section for 65G Towers
Part Number:
SB65GH
Request Quote
Couldn't load pickup availability
Shipping:
Orders containing this item (or multiple quantities) may require an additional shipping charge if their size or weight exceeds standard carrier limits.

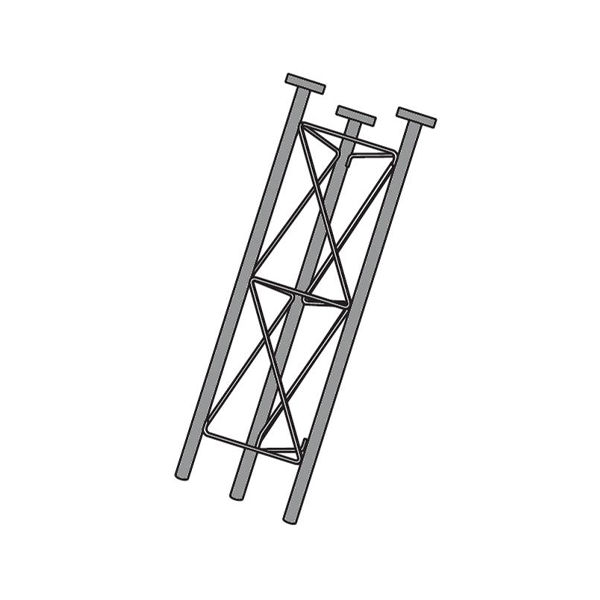

Rohn: SB65GH is a 5ft short base section designed for direct embedment in a poured concrete foundation. It provides a four-bolt flange connection to either a Rohn 65G 10ft Main Tower Section or a Rohn 6520G 20ft Main Tower Section in an approved 65G tower configuration.
- Designed specifically for Rohn 65G tower installations
- 5ft overall section length
- Designed for direct embedment in concrete
- Four-bolt flange connection at each tower leg
- Connects to compatible Rohn 65G 10ft or 20ft tower sections
- Suitable for approved guyed, self-supporting, and bracketed configurations
- Constructed with 1.90" OD tubular steel legs
- 24-1/4" equilateral triangular design
- Continuous 5/8" solid steel zig-zag bracing
- Hot-dip galvanized after fabrication for corrosion protection
- Concrete, tower sections, and installation materials are not included
- Foundation design must follow applicable Rohn engineering drawings and local requirements
