By Rohn
Rohn: SBH25G 25G Hinged Short Base, 3ft-4"
Part Number:
SBH25G
Request Quote
Couldn't load pickup availability
Shipping:
Orders containing this item (or multiple quantities) may require an additional shipping charge if their size or weight exceeds standard carrier limits.

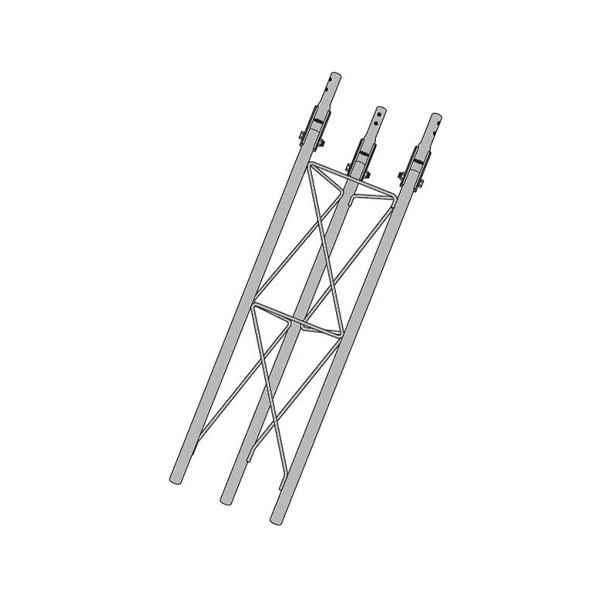

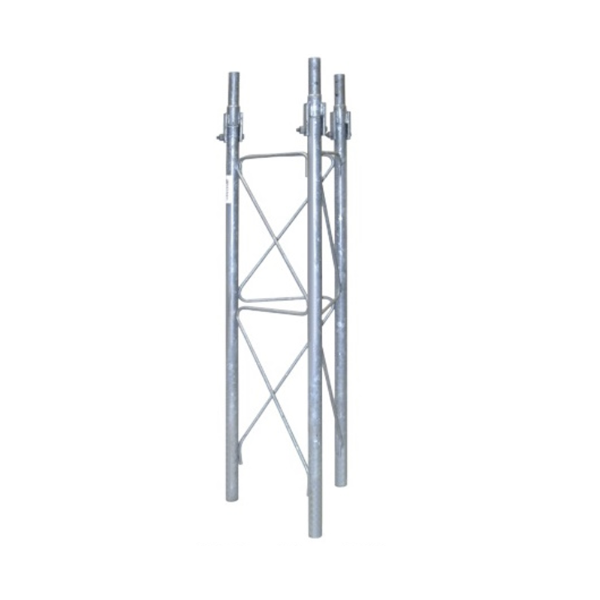

Rohn: SBH25G is a 3ft 4" hinged short base designed for embedding directly into a poured concrete foundation. The hinged connection facilitates raising a compatible Rohn 25G Main Tower Section during installation. Towers installed with this base must remain properly guyed or bracketed.
- Designed specifically for Rohn 25G tower installations
- 3ft 4" overall height
- Designed for direct embedment in concrete
- Hinged connection helps facilitate tower erection
- For guyed or bracketed tower applications only
- 12-1/2" equilateral triangular design
- Constructed with 1-1/4" OD tubular steel legs
- Continuous solid steel rod bracing
- Hot-dip galvanized after fabrication for corrosion protection
- Concrete, tower sections, and installation materials are not included
- Foundation and guying requirements must follow applicable Rohn engineering drawings and local codes
