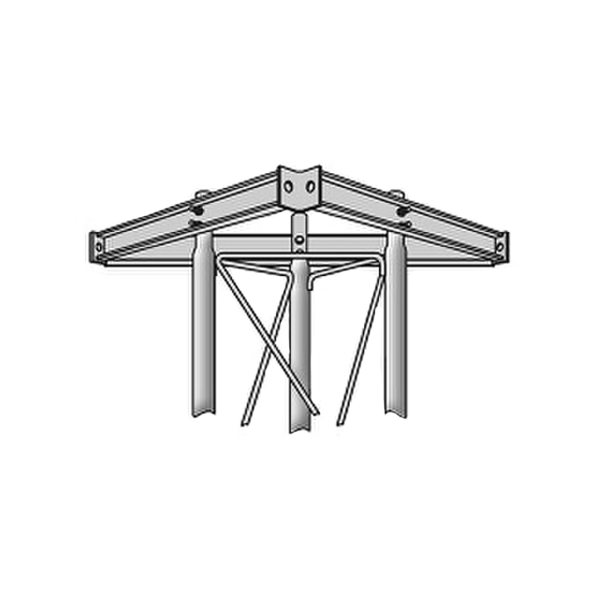

Rohn: TA25 25G Torque Arm Stabilizer Assembly

Rohn: TA25 is a torque arm stabilizer assembly designed to reduce twisting in guyed Rohn 25G tower installations. The assembly is typically positioned near microwave dishes or other focused-beam antennas and provides attachment points for six-way guying.

• Designed specifically for Rohn 25G guyed towers
• Functions as an anti-twist stabilizer assembly
• Recommended near microwave dishes and other focused-beam antennas
• Provides attachment points for six-way guying
• Bolts to the tower at a compatible section joint
• Must be installed while the adjoining tower sections are being assembled
• Supplied as a one-piece welded assembly
• Joint bolts required to attach the assembly to the tower are included
• Hot-dip galvanized for corrosion protection
• Guy wire, shackles, thimbles, grips, and anchoring components are not included
• Requires six compatible 1/2" shackles and properly sized guy-wire termination hardware
• Installation and antenna placement must follow applicable Rohn engineering requirements
