By Square D

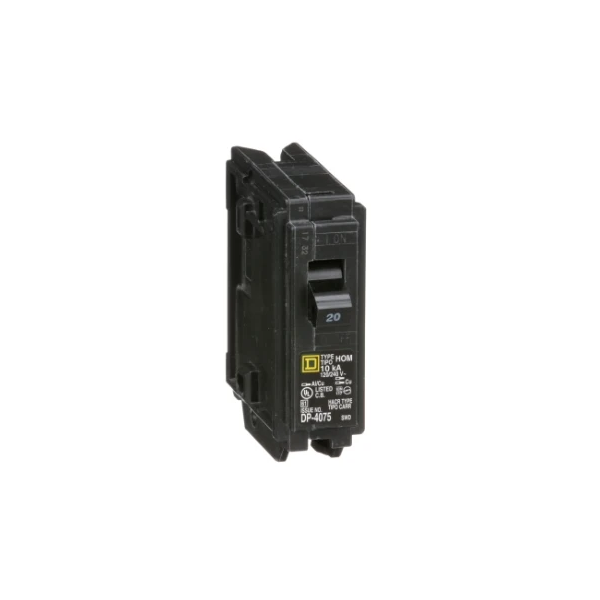

Square D: 20 Amp Circuit Breaker, Single Pole
Part Number:
HOM120CP
Couldn't load pickup availability
Square D: Mini circuit breaker, Homeline, 20A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
| Product | Miniature circuit-breaker |
|---|---|
| Range | Homeline |
| Current Rating | 20 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 1 |
| Circuit Breaker Type | Standard |
| Ratings | HACR and Switching Duty rated |
| Electrical Connection | Clamp terminal for 2 cables |
| Wire Size | 1 x AWG 14...AWG 8 ( aluminium/copper ) 2 x AWG 14...AWG 10 ( copper ) |
| Type | |
|---|---|
| Amp |
