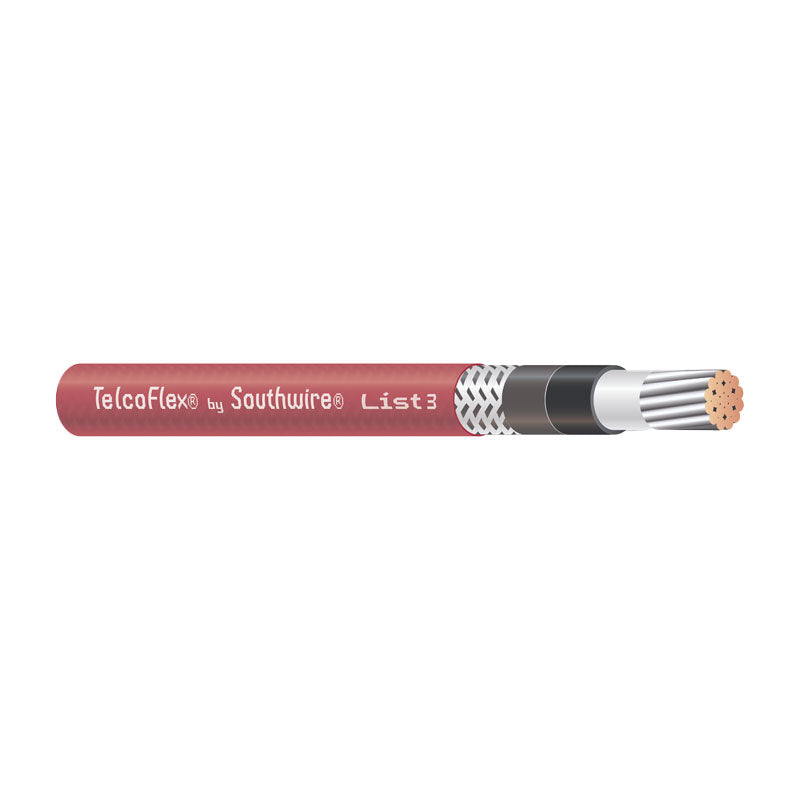

Telcoflex List 3, #10 Red - Per Foot

Low Smoke, Non-Halogenated Insulation, Lead-Free and Silicone-Free, UL Central Office Power Cable with Cotton Braid. 105°C Dry as AWM, 60°C Wet; UL Listed RHH/ST1 90°C Dry and VW-1, 600 Volts DC or AC. Sizes 1/0 AWG and larger are UL Listed for CT USE. CSA AWM I B 105°C 600 Volt FT4.

• Size: 10
• Stranding: 7/.0392"
• Nominal Conductor Diameter: .1130"
• Insulated Min. Average Wall: 45 MILS
• Nominal Insulated Diameter: .210"
• Nominal Outside Diameter Over Braid: .272"
• Max D.C Res @ 20 Degree C: 1.080 OHMS/MFT
• Ampacity Per Nec Table 310.15(B)(16):
  • 75°C: 35
  • 90°C: 40
• Sold Per Foot
• Note: All Sizes are Available in Black, Blue, Gray, Green and Red
