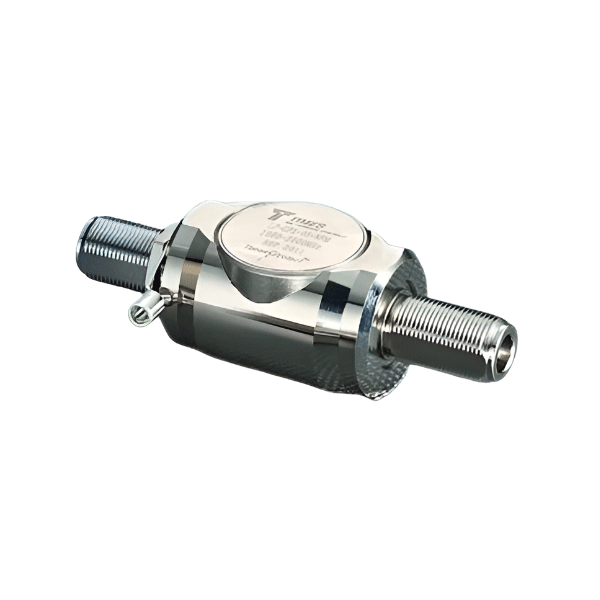

Times Microwave: DC Pass Through GPS Protector
Part Number:
LP-GPX-05-NFF
Couldn't load pickup availability
The LP-GPX-05-NFF high performance series is an exceptional DC pass design for protection of GPS receivers requiring up to 5Vdc power to be supplied on the center pin. While the RF path is DC blocked, the biased DC voltage protection circuit uses Solid State protection technology to provide unsurpassed surge performance.
| Impedance | 50 Ω |
| Frequency Range | 1000-2000 MHz |
| VSWR/Return Loss | < 1.2:1 / <-20dB |
| Insertion Loss | < 0.1dB |
| Average Power | 50W |
| Maximum Surge Current | 10kA multiple (1.2×50/8×20µs wave-form) |
| Turn on Voltage | 6Vdc |
| Residual pulse Voltage | < 12V (6kV/3kA 1.2×50/8×20µs wave-form) |
| Energy Throughput | < 110µJ |
| Protection Circuit | DC Blocked RF Path/Solid State DC Pass |
