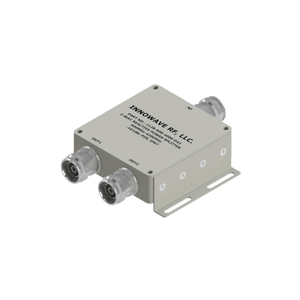

Low-PIM 2-Way In-Line Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 4200MHz. These splitters cover all the traditional Cellular frequencies, including the CBRS and C-Bands. This unique In-Line structure is Compact and can be used without any bulky inter-connections or undue cable stress. They are rated to be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.

Wide bandwidth 600 MHz – 4200 MHz
CBRS and C-Band Ready
Compact In-Line Reactive Splitter
Low Insertion Loss and low VSWR
Low PIM, -163dBc
RoHS Complaint
Weatherproof / Outdoor unit
4.3-10 connectors

Frequency Range	600 MHz – 4200 MHz
Passband Insertion Loss	0.25 dB @ 600-2700 MHz 0.30 dB @ 2700-4200 MHz (Over the theoretical loss of 3 dB)
VSWR	≤ 1.25 @ 600-2700 MHz ≤ 1.30 @ 2700-4200 MHz
Power Handling	300 W (Avg)
Impedance	50Ω
PIM – 3rd	-163 dBc (2 Tones +43 dBm)
Temperature Range	-30°C to 75°C
Weight	1.00 lb
Housing Finish	Aluminum Body
Mounting Method	Mounting Holes
Humidity	5% - 95%
Environment	IP67
