iPA Series

SKU:
: iPA

TEST & MEASUREMENT

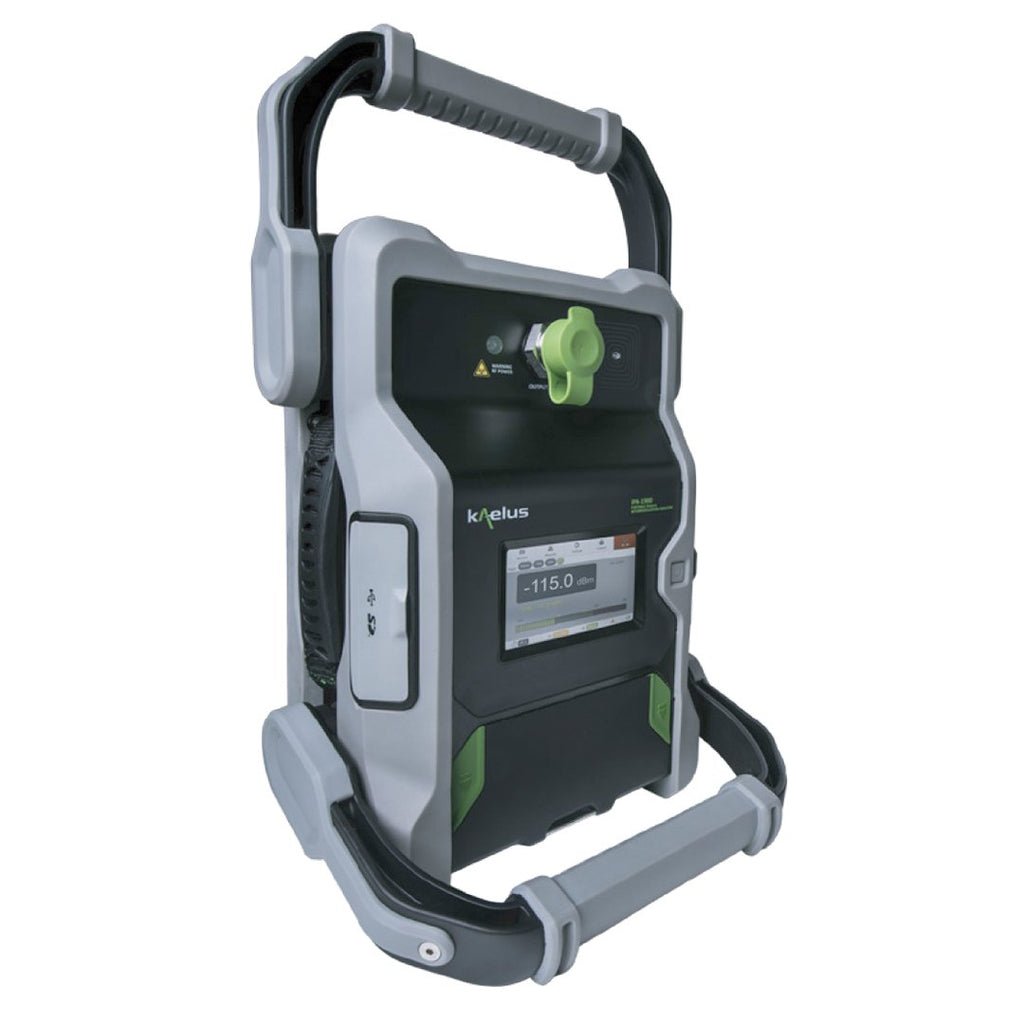

The iPA Series Passive Intermodulation (PIM) analyzer is the first battery powered PIM Test Analyzer versatile enough to support multiple test scenarios such as testing at the top of the tower, base of tower, roof top and in-building for DAS systems. An intuitive touch screen interface is also available for local control, performing test and quickly generating site reports.

Features:

  • Rugged and reliable; designed with tower climbers in mind
  • Fully configurable frequencies, powers and IM products • Remote control possible with handheld device, eg tablet, cell phone
  • Simple to operate touch screen interface
  • Extensive reporting capabilities
  • Spectrum monitor, frequency sweep and time trace modes
  • RTF compatible
  • Battery powered
  • Two models available A Series 0.1 to 20W, B Series 3mW to 20W

Accessories Included:

 Part#: Description:
L3-DF-10W-LP DIN Female 10-Watt Low PIM Load 6.5 GHz to 3 GHz
R29-1979 Smart Chargers (1.2A) for 29.4V Li-ion/Polymer
R92-0287 (2) Battery for iPA series PIM Instrument
R92-0443 Dual Battery Charging Cradle
L3-TQ-716 7/16 DIN Male Torque Wrench
L3-CRESCENT-WRENCH 10” Crescent Wrench
L3-RFA-4013 7/16 DIN Adapter Kit
R92-0445 Hard Case
L3-POWERBANK Power Bank

Note: Screen Repair Service Available
