ODM TTK-500
TEST & MEASUREMENT

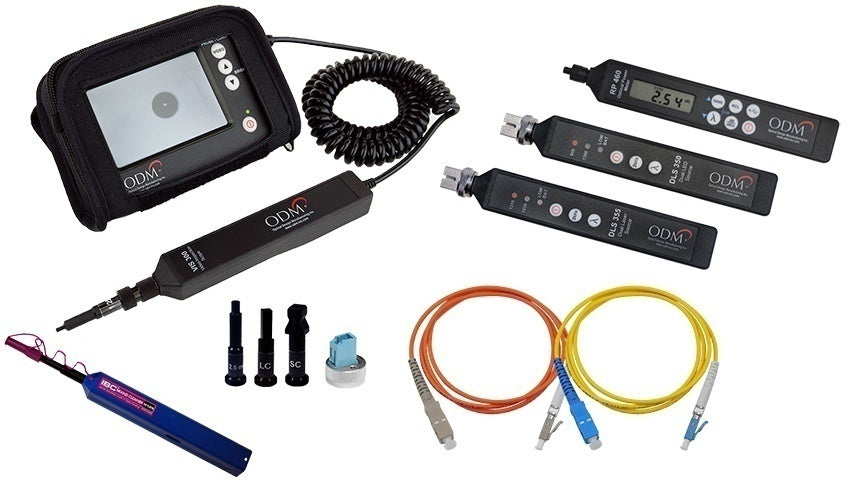

The ODM TTK 500 Test, Inspection & Cleaning Kit provides test technicians and contractors with high-end hardware and software to guarantee industry standard compliance in fiber optic-based telecommunications. The TTK 500 contains all equipment necessary to inspect, clean, and test fiber optic cables, while ODM’s proprietary software allows for professional closeout reporting.
- USB connectivity and included ODM software package provide simple plug-and-play image-saving for closeout reporting.
- Comprehensive PASS/FAIL analysis compliant with IEC 61300-3-35 industry standard.
- Complete wet/dry cleaning system ensures the cleanest fiber endfaces possible.
- Optical Power Meter with archiving ability and streaming data via USB.
- Two included light sources provide telecom industry standard wavelengths for testing loss in single mode and multimode systems.
- Includes all patchcords, adapters for SC and LC connector systems.
Accessories Included:
Part#: | Description: |
DLS 350 | Handheld Dual LED Light Source |
DLS 355 | Dual Laser Light Source, Single Port, 1310 & 1550nm Output |
RP 460 | Optical Power Meter |
VIS 300M | Video Inspection Scope with USB |
VIS 300B | VIS 300B Probe |
L3-ODM-PS | Power Supply for ODM VIS 300C and VIS 300M |
L3-ODM-LC-OPM | LC Adapter for ODM Optical Power Meter |
L3-LC/SC-S-Y-1M | 1 Meter LC to SC Single Mode Simplex Yellow Fiber |
L3-LC/LC-S-Y-1M | 1 Meter LC to LC Simplex Yellow Fiber Cable Single Mode |
L3-LC/SC-MM-S-0-1M | 1 Meter LC to LC Multimode Simplex Orange Fiber |
L3-ODM-HARDCASE | Hard Case |
L3-ODM-SC-ADAP | SC Adapter for ODM Scope |
L3-ODM-LC-ADAP | LC Adapter for ODM Scope |
L3-ODM-1.25-ADAP | 1.25mm Adapter for ODM Scope |
L3-ODM-2.5-ADAP | 2.5mm Adapter for ODM Scope |
L3-ODM-2.5-ADAP4XX | 2.5mm Universal Adapter for RP450 and RP 460 Power Meter Models |
L3-LCLC-LB | LC Fiber Optic Loopback Adapter - LC Single Mode 9/125 Fiber |
L3-SC/SC-S-ADAP | SC to SC Simplex Adapter |
L3-LCLC-DSCOUP-NF | Fiber Coupler LC/LC Duplex for Single Mode Fiber, No Flange |
L3-ONECLICK-125 | One Click Cleaning Pen 1.25mm LC/MU 800 Cleans |
L3-USB | Macro USB Cable |
L3-POWERBANK | Power Bank |
The ODM TTK 500 Test, Inspection & Cleaning Kit provides test technicians and contractors with high-end hardware and software to guarantee industry standard compliance in fiber optic-based telecommunications. The TTK 500 contains all equipment necessary to inspect, clean, and test fiber optic cables, while ODM’s proprietary software allows for professional closeout reporting.
- USB connectivity and included ODM software package provide simple plug-and-play image-saving for closeout reporting.
- Comprehensive PASS/FAIL analysis compliant with IEC 61300-3-35 industry standard.
- Complete wet/dry cleaning system ensures the cleanest fiber endfaces possible.
- Optical Power Meter with archiving ability and streaming data via USB.
- Two included light sources provide telecom industry standard wavelengths for testing loss in single mode and multimode systems.
- Includes all patchcords, adapters for SC and LC connector systems.
Accessories Included:
Part#: | Description: |
DLS 350 | Handheld Dual LED Light Source |
DLS 355 | Dual Laser Light Source, Single Port, 1310 & 1550nm Output |
RP 460 | Optical Power Meter |
VIS 300M | Video Inspection Scope with USB |
VIS 300B | VIS 300B Probe |
L3-ODM-PS | Power Supply for ODM VIS 300C and VIS 300M |
L3-ODM-LC-OPM | LC Adapter for ODM Optical Power Meter |
L3-LC/SC-S-Y-1M | 1 Meter LC to SC Single Mode Simplex Yellow Fiber |
L3-LC/LC-S-Y-1M | 1 Meter LC to LC Simplex Yellow Fiber Cable Single Mode |
L3-LC/SC-MM-S-0-1M | 1 Meter LC to LC Multimode Simplex Orange Fiber |
L3-ODM-HARDCASE | Hard Case |
L3-ODM-SC-ADAP | SC Adapter for ODM Scope |
L3-ODM-LC-ADAP | LC Adapter for ODM Scope |
L3-ODM-1.25-ADAP | 1.25mm Adapter for ODM Scope |
L3-ODM-2.5-ADAP | 2.5mm Adapter for ODM Scope |
L3-ODM-2.5-ADAP4XX | 2.5mm Universal Adapter for RP450 and RP 460 Power Meter Models |
L3-LCLC-LB | LC Fiber Optic Loopback Adapter - LC Single Mode 9/125 Fiber |
L3-SC/SC-S-ADAP | SC to SC Simplex Adapter |
L3-LCLC-DSCOUP-NF | Fiber Coupler LC/LC Duplex for Single Mode Fiber, No Flange |
L3-ONECLICK-125 | One Click Cleaning Pen 1.25mm LC/MU 800 Cleans |
L3-USB | Macro USB Cable |
L3-POWERBANK | Power Bank |
